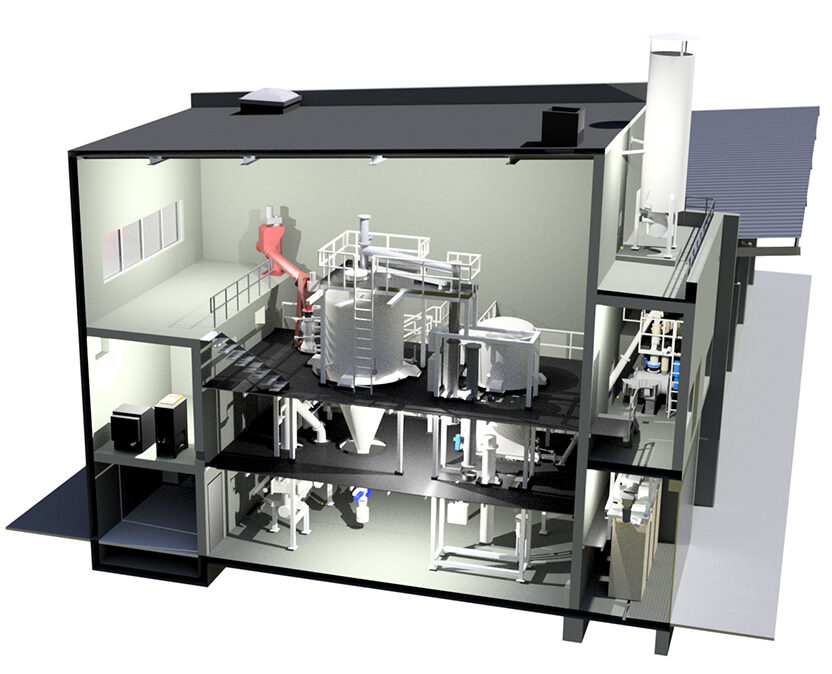

CW1800-500

Type 500

Technical data

Electrical power500 kW
Thermal output 90 °C 740 kW
Thermal output ~50 °C1)250 kW
Fuel heat output 1,808 kW
Fuel requirement (dry)362 kg/h
Specific fuel requirement (dry) 0.72 kg/kWh el
Premium Biochar 4.5 m³/day
Space requirement gas generator2)approx. 120 m²
Space requirement gas engine2)approx. 55 m²
Fuel qualityt 3) Wood chips; G50, W50, with fines and bark

1) with low-temperature use option package; temperature is subject to seasonal fluctuations
2) Customization possible
3) <W10 vor Eingang Gaserzeuger; durch Optionspaket Trocknung sichergestellt

Generate energy and Minus-CO2 now

We support you in the realization of your projects. Together for a climate-positive future.

Sustainable wood energy production
Green Carbon for industry and commerce
Patented SYNCRAFT® technology

Sustainable products

What do our Reversepowerplants produce?

Electricity

Our systems generate renewable energy - efficiently and cleanly. We generate 0.3 kW of green electricity from 1 kW of fuel.

Heat

We develop individual heat utilization concepts according to customer requirements. We generate up to 0.62 kW of green heat from 1 kW of fuel.

Green Gas

Our Reversepowerplants reliably and flexibly supply Green Gas for direct applications in industry and commerce.

Green Carbon

In addition to electricity and heat, our plants produce green carbon as a further product. This allows us to permanently remove CO2 from the atmosphere.

Minus-CO2

If Green Carbon is fed into a permanent sink, CO2-Certificates can be generated and emissions offset.

Do you have any questions?

Service

Smart decarbonization

Cost-effective decarbonization solution from 5 GWh heat or gas demand
Can be ideally combined with heat pumps, CHP units and wood chip boilers
Can be designed as a base load unit or Daily Sprinter
Solution that can decarbonize remaining fossil fuel systems

Contact Syncraft experts

Service

More than 15 years of expertise

Techno-economic evaluation
Technical support for system approval
Implementation of the entire system technology as general contractor
Complete integration of trades such as drying, bunker, biomass feed
Partner brokerage for financing, plant operation, raw material procurement and charcoal sales

Contact Syncraft experts

Generate energy and Minus-CO2 now

We support you in the realization of your projects. Together for a climate-positive future.

Sustainable wood energy production
Green Carbon for industry and commerce
Patented SYNCRAFT® technology

References

View all references

2xCW1800-500 PERG / AT

Together with NAWARO ENERGIE, we developed the largest Reversepowerplant in Austria to date, which went into operation for the first time in 2023. It has a total output of 1,000 kW of electrical energy and 1,540 kW of thermal energy. The thermal energy is used for the base load supply of the local heating network, while the electrical energy is fed into the local power grid to supply around 2,000 households.

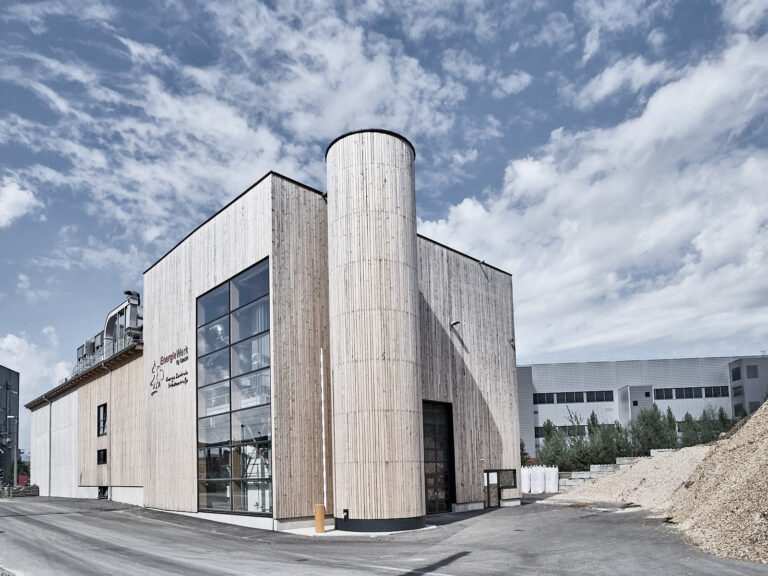

CW1800-500 STÖCKEN / AT

Construction of the CW1800-500 reverse power plant in Stöcken was completed between January and June 2019. Since the plant was completed, the heat produced has been used to supply base load to the district heating network and for drying. The plant has an electrical output of 500 kW and is the first power plant with a Jenbacher 412 engine in operation.
